Description
Thermal Break
Why Choose the Teza 156 Series?
The TEZA 156 Series Multi-Sliding Patio Door combines contemporary design with advanced engineering to create expansive openings and seamless indoor-outdoor living. Built with a thermally broken aluminum frame featuring PA66 polyamide thermal barriers, the 156 Series delivers exceptional energy efficiency, smooth operation, and lasting durability. Precision-engineered stainless-steel rollers support large glass panels for effortless performance, while customizable configurations provide the flexibility to complement a wide range of residential architectural styles.
- Thermally broken aluminum frame with PA66 polyamide thermal barriers helps minimize heat transfer for improved energy efficiency and year-round indoor comfort.
- Heavy-duty stainless-steel roller system provides smooth, reliable operation and supports large sliding door panels with ease.
- Customizable configurations accommodate a variety of layouts with stacking options supporting up to 8 panels.
- Compatible with retractable and optional motorized screen systems for enhanced comfort, convenience, and insect protection.
- Integrated sill pan and sloped track design help channel water away from the door for improved weather resistance and drainage.
- High-performance weatherstripping helps reduce drafts, moisture intrusion, and outside noise while creating a tight weather seal.
- Durable powder-coated finish resists scratches, fading, and corrosion for long-lasting beauty with minimal maintenance.
- Pre-drilled frames and detailed installation instructions help simplify installation for qualified professionals.
- Designed for residential applications, delivering modern aesthetics, dependable performance, and exceptional durability.

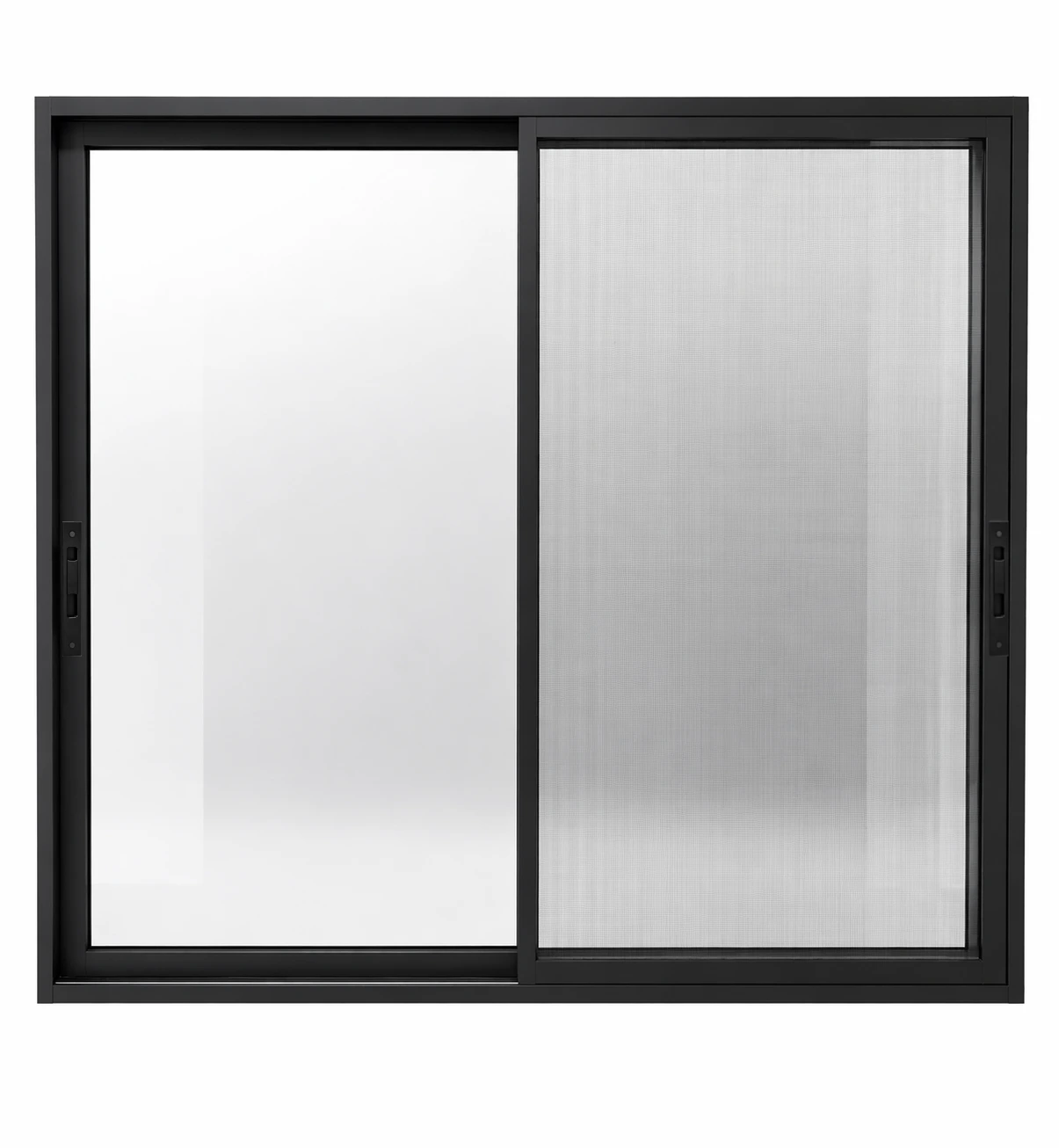

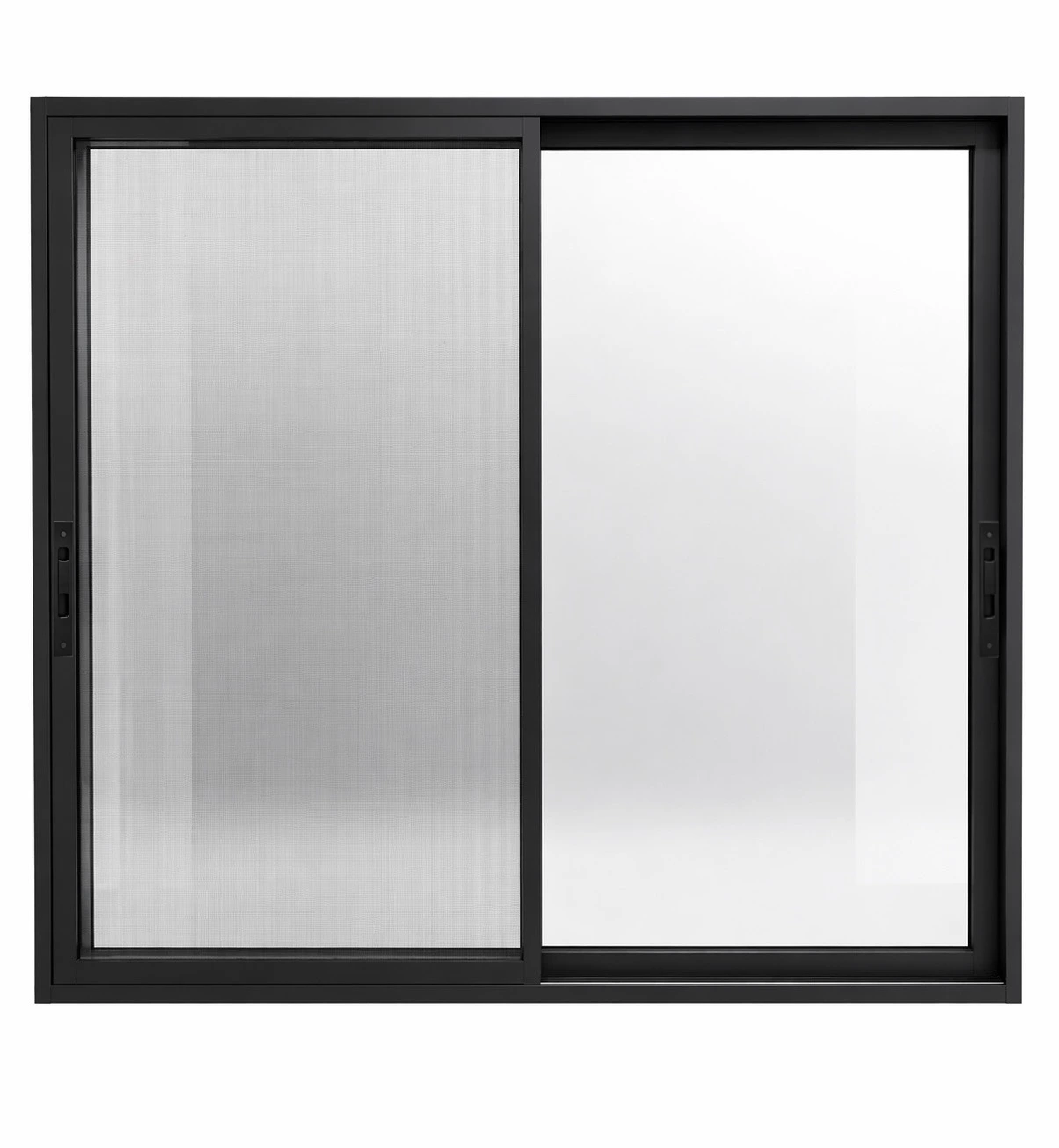

TEZA 156 Series Sliding Door System
Expansive Dimensions
TEZA doors are engineered to reach up to 30 feet wide and 16 feet tall, delivering a bold combination of structural strength and refined elegance.
Low Maintenance Performance
Designed to withstand all weather conditions, the durable powder-coated finish preserves appearance with minimal upkeep.
Customizable Design Options
Tailor the system to your space with a wide range of configuration possibilities to match any architectural style.

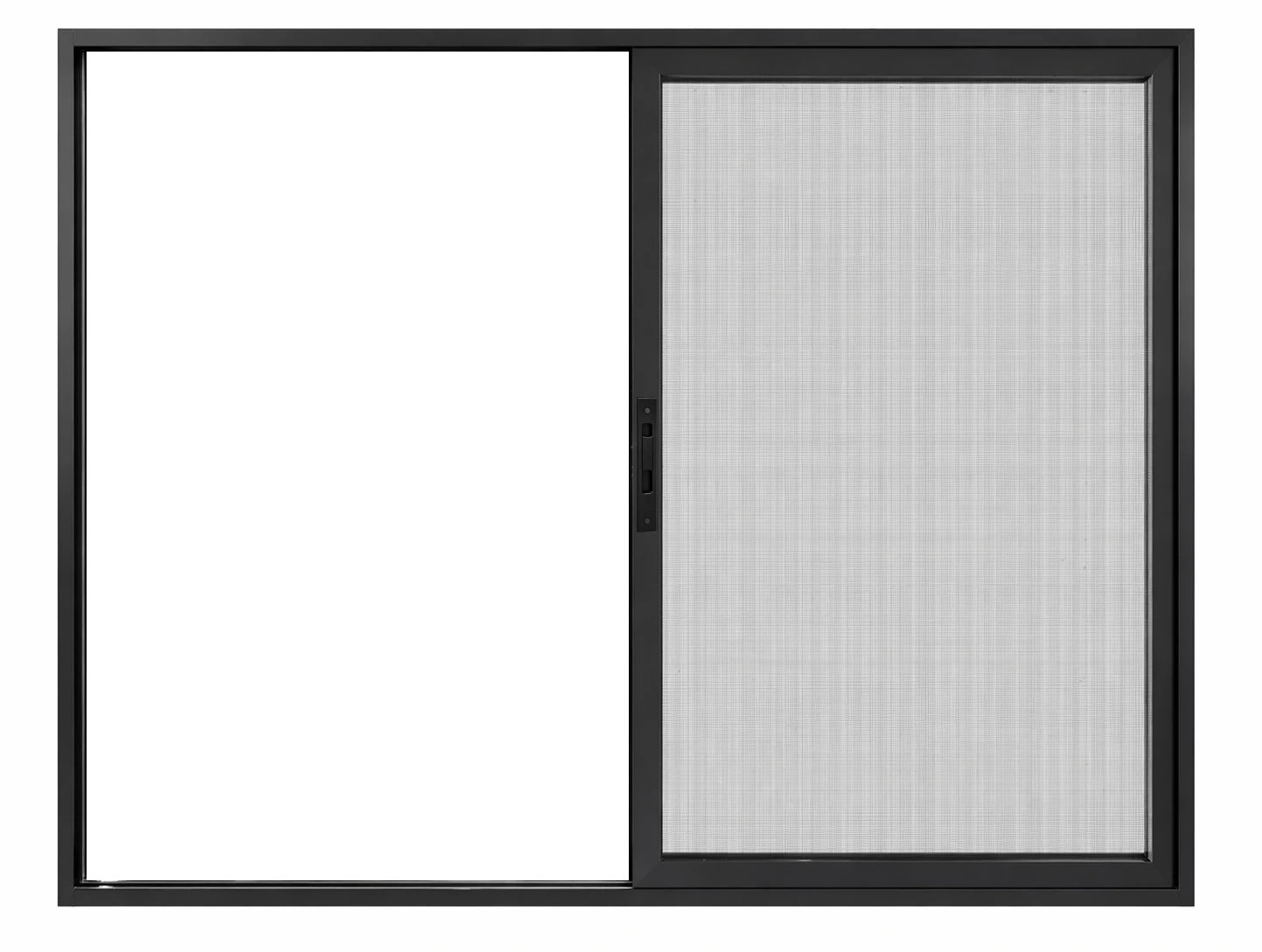

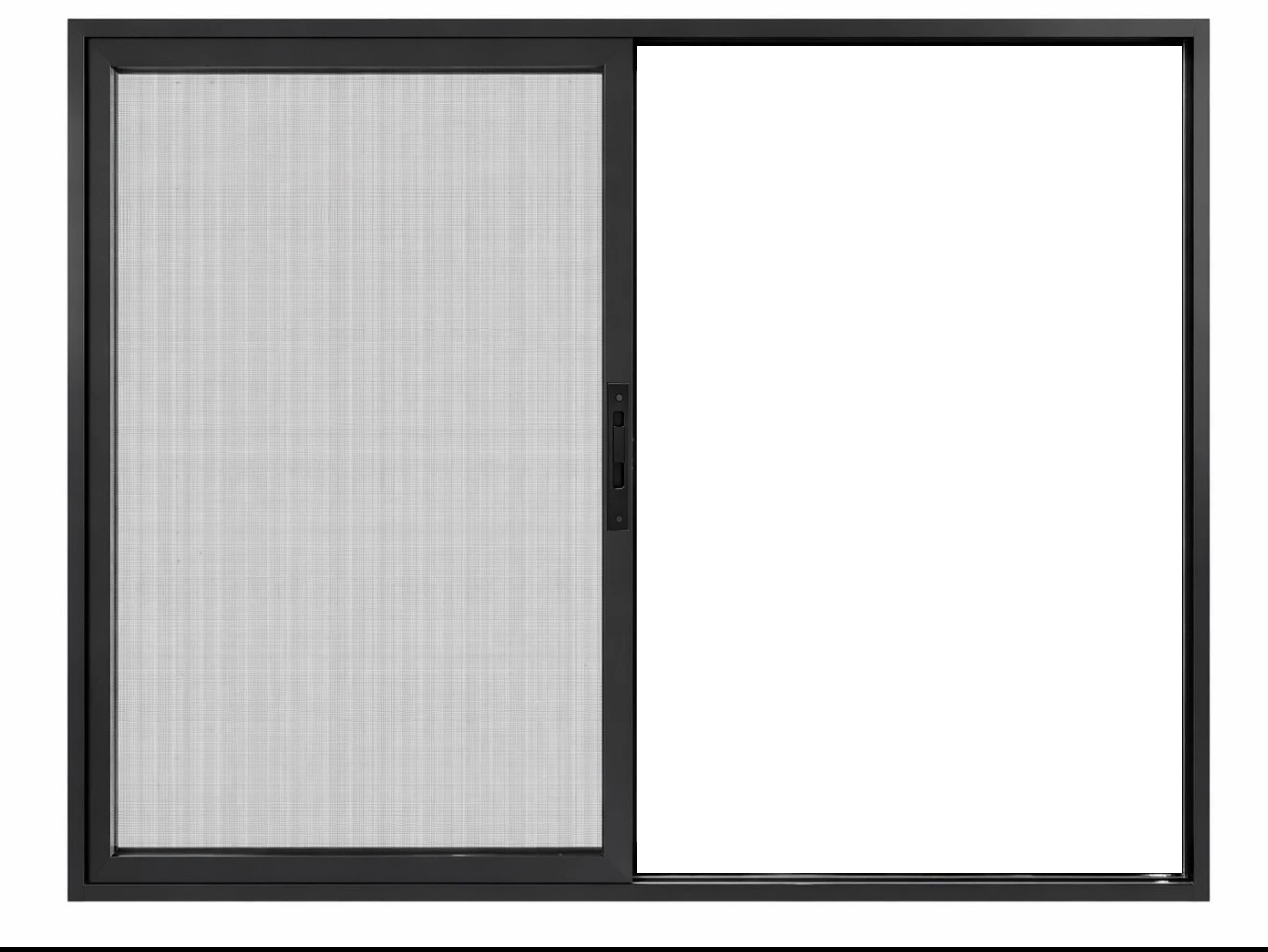

Retractable u0026 Motorized Screens
Enhance comfort and convenience with multi-directional retractable and optional motorized screen systems.
Versatile Panel Layouts
Select the stacking configuration that best suits your layout, with options supporting up to 8 panels.
Simplified On-Site Assembly
Pre-drilled frames and detailed installation guides ensure an efficient and straightforward setup.
Advanced Thermal Break Technology
Combining high-grade aluminum with PA66 polyamide, this system minimizes heat transfer and improves energy efficiency.
Built-In Leak Protection
Integrated sill pans and sloped design effectively channel water away, while high-performance weatherstripping ensures a tight seal.

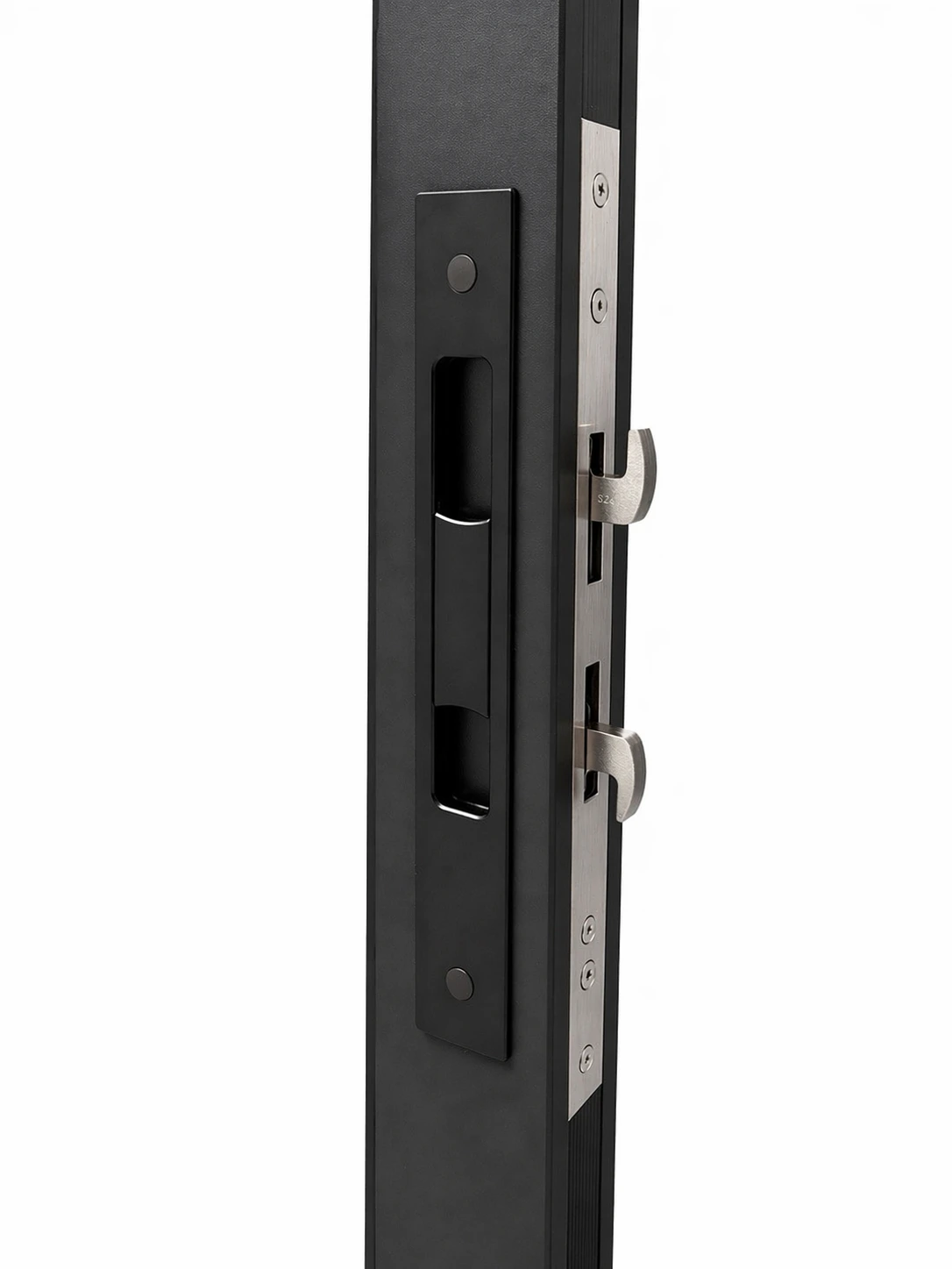

Enhanced Security Options
Upgrade with optional 3-point or 5-point locking systems, along with laminated glass for added safety and protection.
| Feature | 156 Series Sliding Door |
|---|---|
| Design Type | Sliding Door |

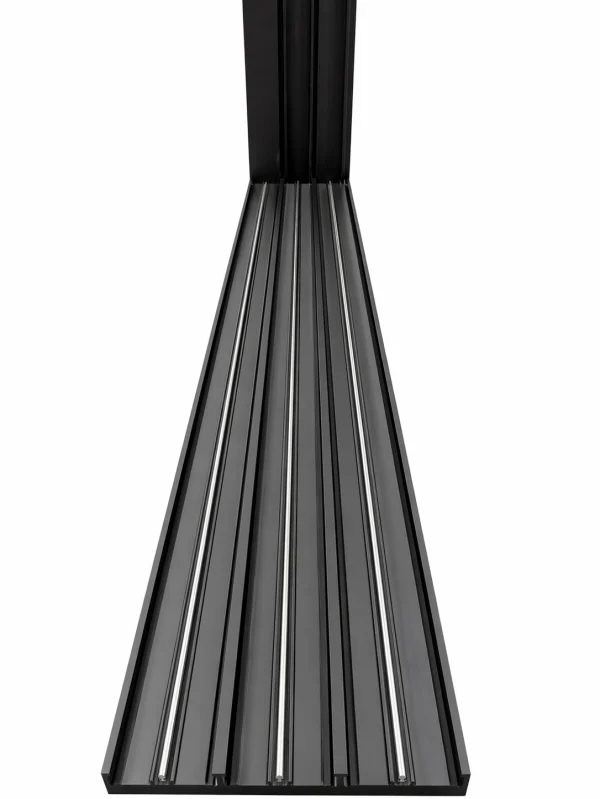

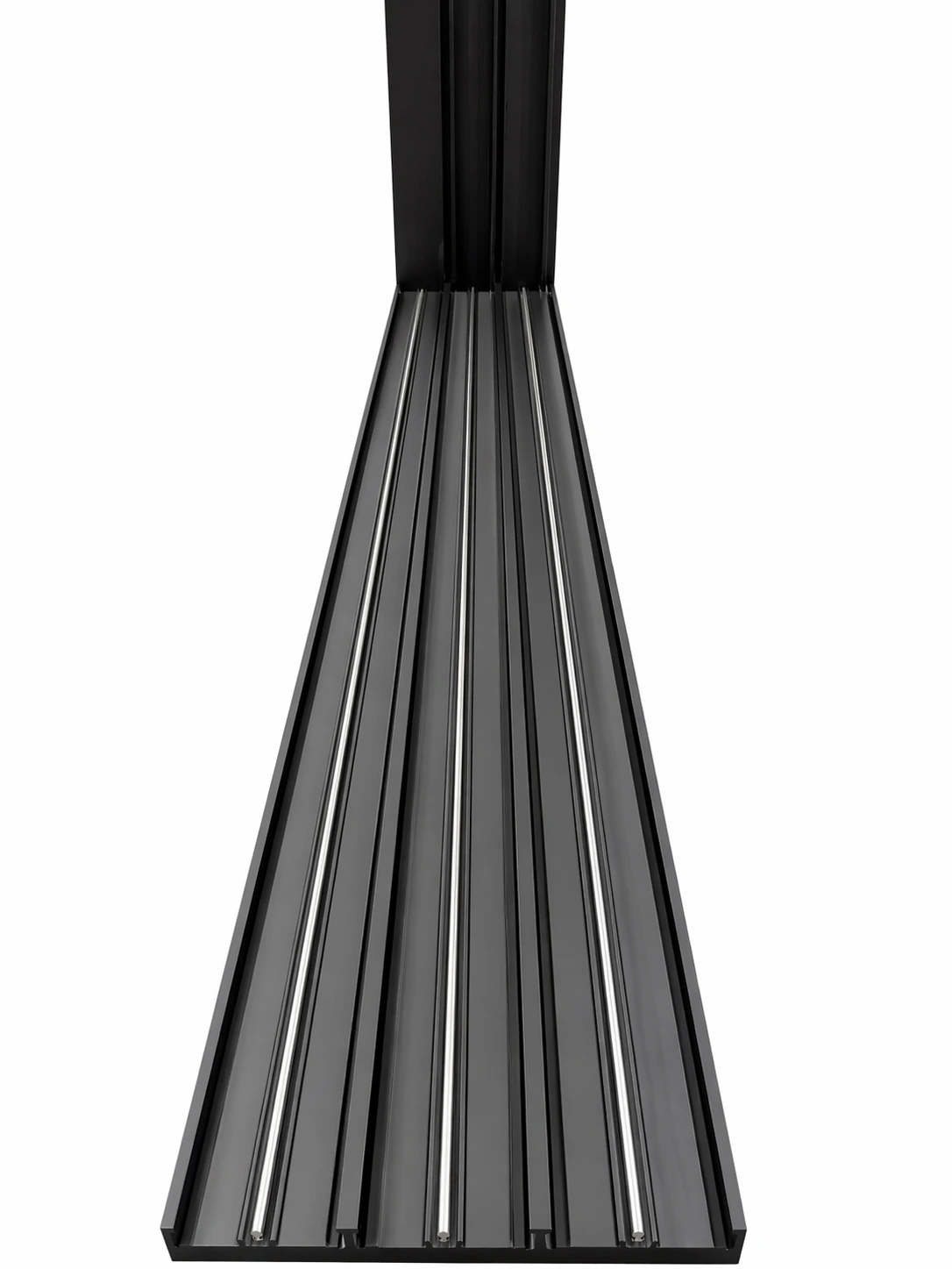

| Track Options | 2″ High Track or 1″ Low Track |
| Panel Configurations | 2 to 5 Panels |
| Locking System | 2-Point Locking System |
| Rollers | High-Quality Rollers |
| Screen Option | Retractable (after 2 panels) |
| Maximum Height | 120 Inch |
| Maximum Panel Width | 79 inch |
| Thermal and Sound Insulation | Yes |
| Thermal Broken Aluminum | Yes |
| Seaside Option | Yes |
| Double and Triple Pane Glass | Yes |
| Corner Option | No |
| Low Threshold Option | Yes |
| Child Finger-Safe Design | Yes |
| Slim Profile (Glass Spacing) | 5 1/4″ |
| Bottom Weighted System | Yes |
| Easy-Clean Threshold | Yes |
| Outside Opening Option | Yes |
| Weather Resistance | Hot/cold climates and rainproof |
Key Benefits
- Energy Efficient
- Weatherproof Seals
- Heavy Duty Hardware (Made in USA)
- Powder Coated Paint
- Customizable Sizes and Configurations
- Smooth Sliding System
- Sleek Frame Design
- Double Pane Glass with Argon Gas
- Low-E Tempered Glass

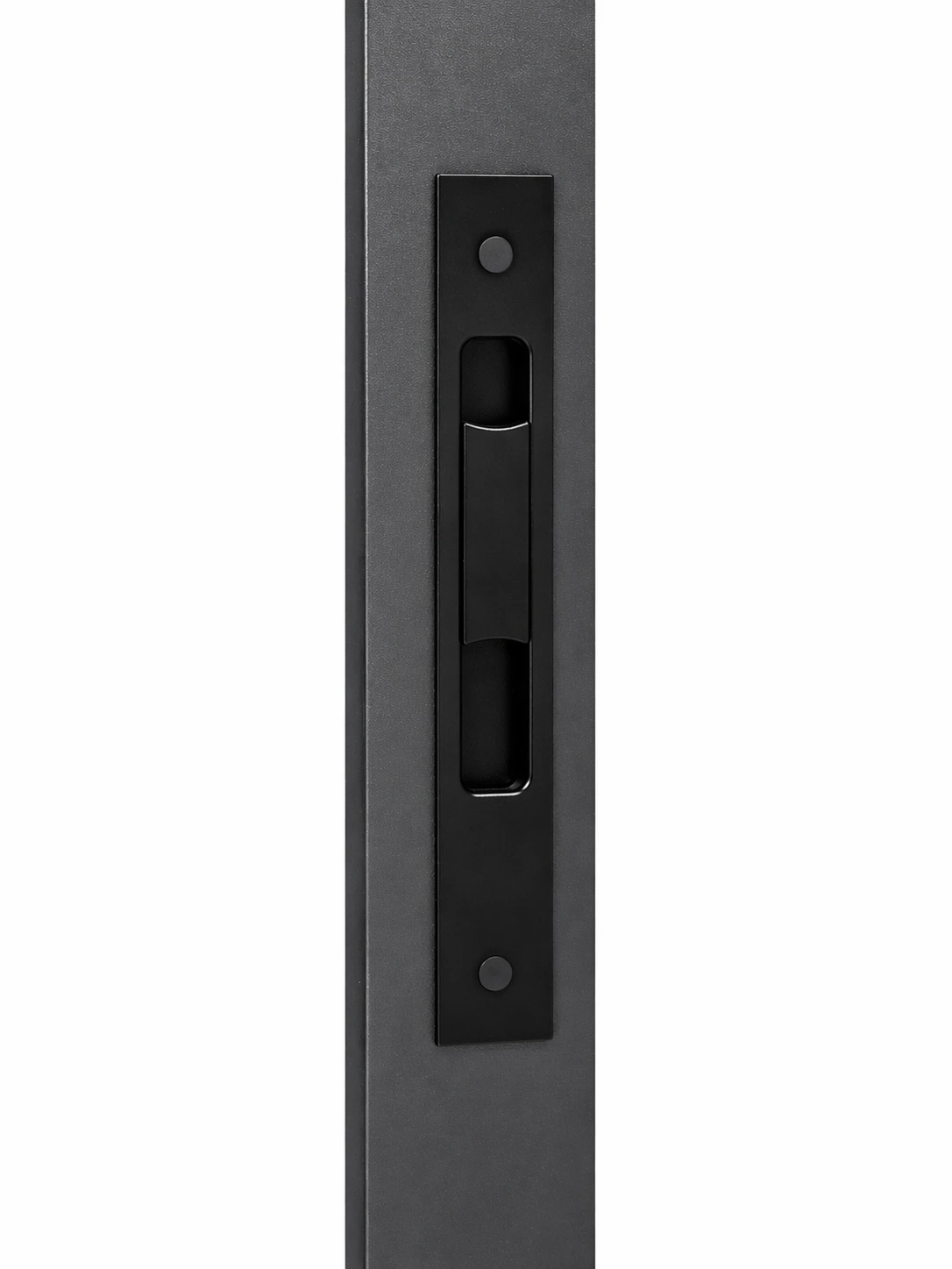

Durable Hardware, Made in the USA
Teza 156 Series Sliding Patio Doors are built with premium, American-made hardware for superior performance and reliability. Precision-engineered rollers, adjustable components, and robust tracks deliver consistently smooth, effortless operation. For enhanced security, the system offers advanced 3-point or 5-point locking options, providing dependable protection and long-term peace of mind.
Essential Product Resources
Access everything you need for a successful project in one place. Download our comprehensive product catalog, detailed spec sheets, AutoCAD files for precise planning, and step-by-step installation guides—all designed to help you select, plan, and install with confidence.
